Industrial Pallet Racking PLC Fence Mesh Welding Machine

Brand Name : FZ

Model Number : DNW-13Q

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 30 days

Packaging Details : Plastic films or can be customized.

Type : Industrial Pallet Racking Wire Mesh Welding Machine

Material of machine : Heavy plates and section bars

Wire diameter range : 6+6mm

Mesh hight : ≤1300mm

Mesh hole size : 50*25mm

Welding speed : 40-60 times/min

Usage : Pallet racking

Welding method : Pneumatic

Producton capacity : 50 Sets/Month

Weight : 20 Tons

Voltage : 220V/380V/415V/440V or can be customized

Control system : PLC control

Cooling method : Water cooling

Warranty : 1 year

Contact Now

Industrial Pallet Racking Wire Mesh Welding Machine

Unpack all packing. (Protective measures taken before transport to avoid damage caused by vibration in transit)
Ensure that the work site is free of flammable, explosive and other dangerous goods.
Check if the machine connection is fastened, the installation is in place, and the lubricating part shall be lubricated.
Check the machine gas system, no damage and other phenomena. (including air compressor, gas storage tank, filter, cylinder, joint, solenoid valve, muffler, air hose)
Check the machine waterway system, no impurities, damage and other phenomena. (including water, water pipes, joints, ball valves)
Power cord, ground wire, test whether the main power supply is correct, to ensure that the three-phase electricity is correct.
Boot attention, must ensure that the machine required media, gas, water supply is fully equipped.
After strictly checking the circuit connection and insulation, the power on trial operation, if there is any abnormal, immediately power off, find the cause. During trial operation, the personnel should be away from the movable part of the machine.

Item	Name	QTY	Unit
1	Welding machine	1	SET
2	Welding Control System	1	SET
3	Servo Control System	1	SET
4	Servo stepping device	1	SET
5	Cross Wire Auto-Feeding System	1	SET
6	Long wire loading frame	1	SET
7	Mesh traction platform	1	SET
8	Long wire feeding car device	1	SET
9	Automatically stacking device	1	SET
10	Mesh transportation car	1	SET
11	spare part case	1	PCS
12	Equipment operation and maintenance manual	1	COPY

Industrial Pallet Racking Wire Mesh Welding Machine

If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.

Gas supply equipment or water pump should also do corresponding maintenance.

Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.

Industrial Pallet Racking PLC Fence Mesh Welding Machine

Product Tags:

pallet racking fence mesh welding machine

plc fence mesh welding machine

industrial pallet racking wire mesh welder

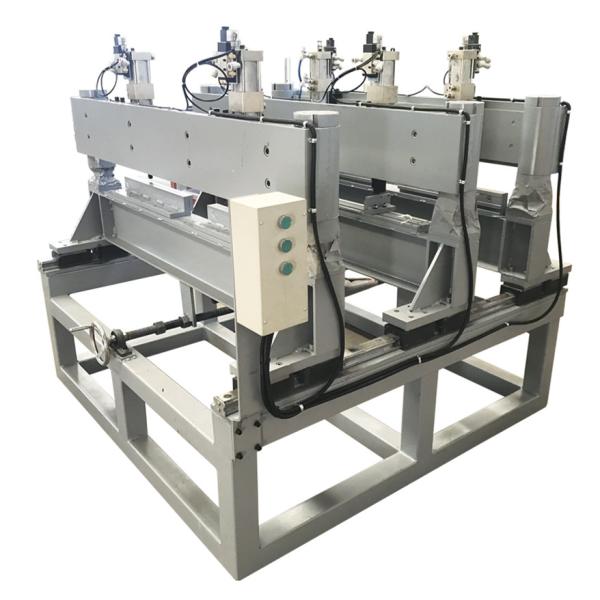

Industrial Pallet Racking PLC Fence Mesh Welding Machine Images
